Feature:

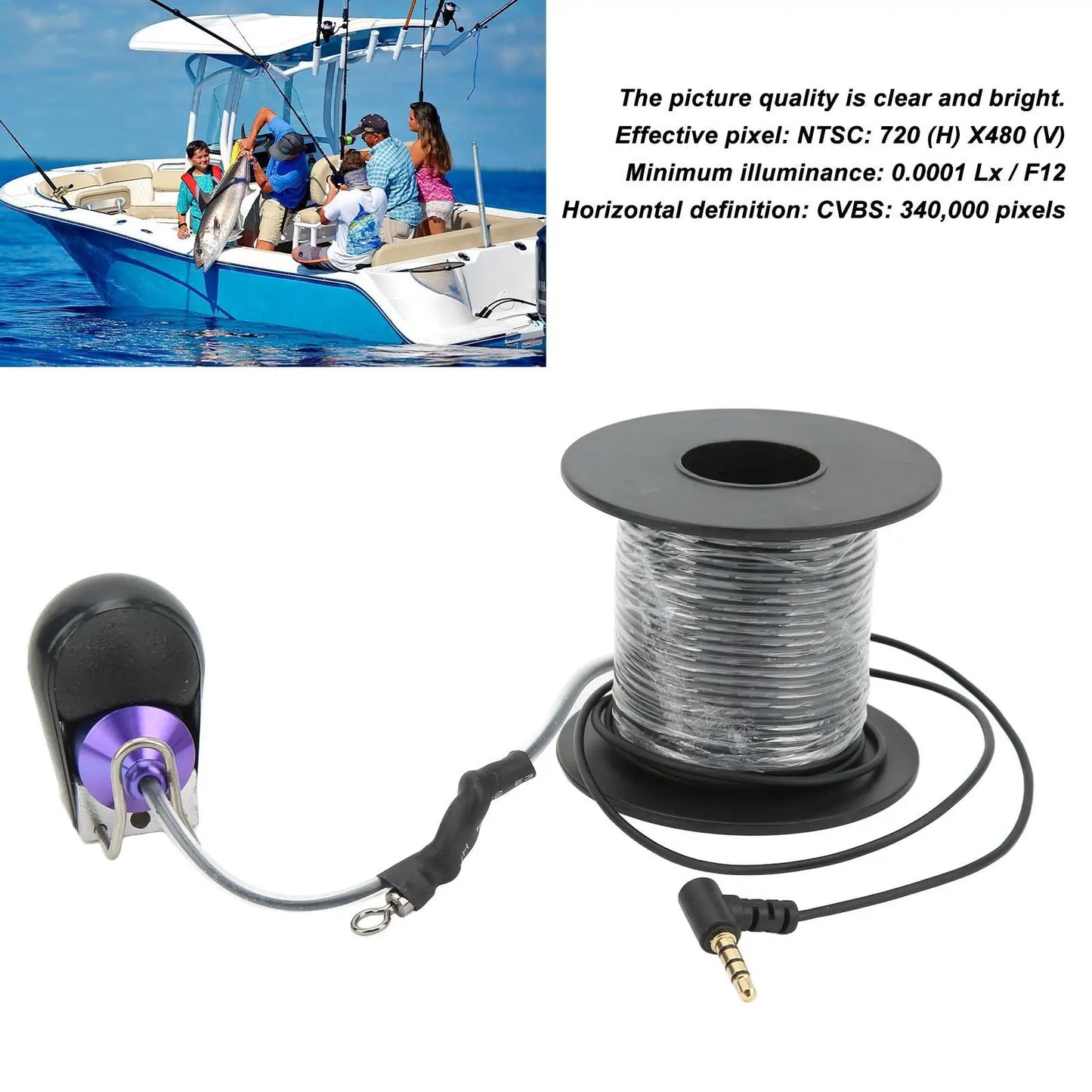

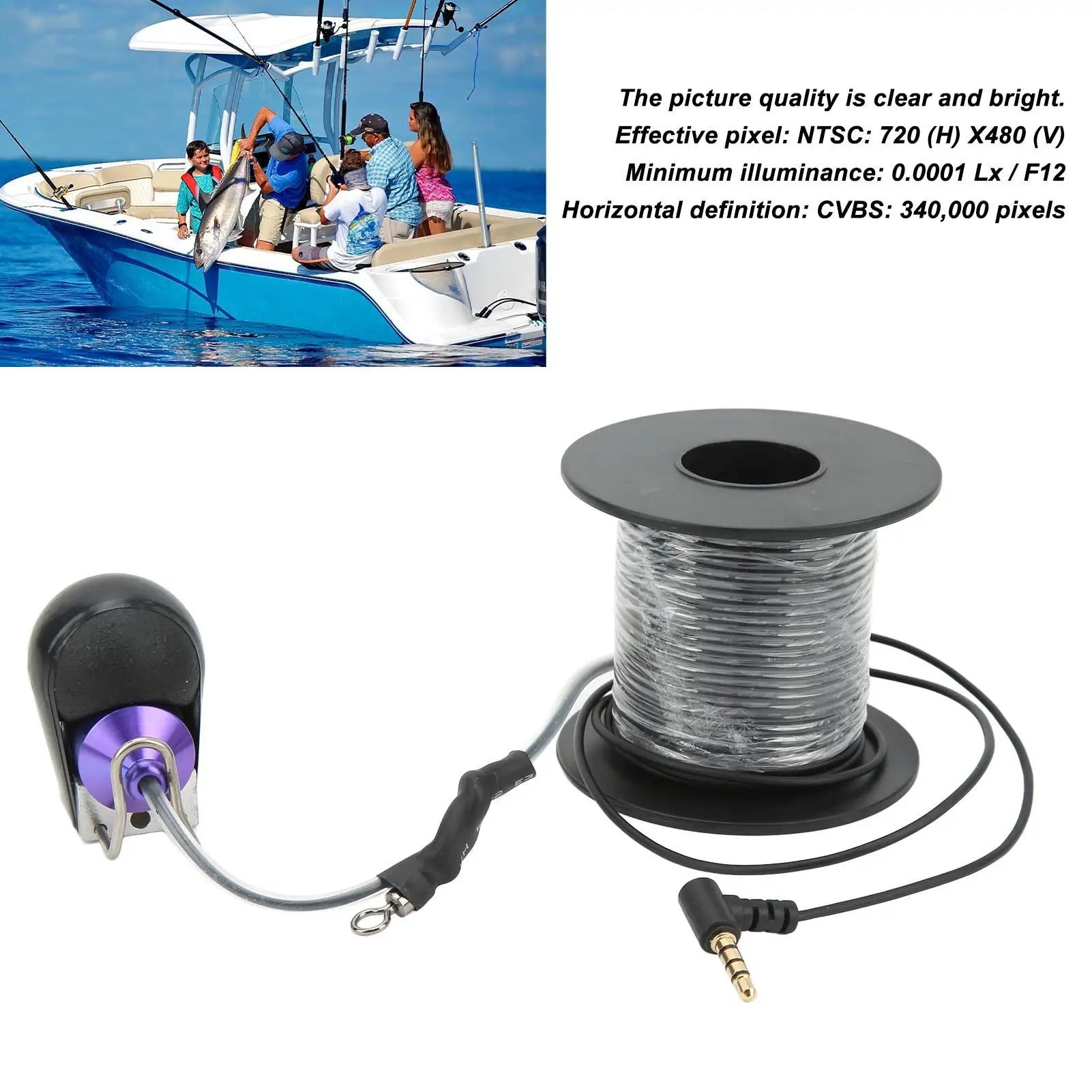

1. Parameters: Effective pixels are NTSC: 720 (H) for X4 80 (V); Minimum illumination of 0.0001 Lx / F12; Horizontal definition: CVBS: 340,000 pixels.
2. Premium Material: Fish finder camera is made of premium aluminum alloy, which is durable, corrosion resistant and has a long service life.
3. Widely Compatible: The underwater fishing camera comes with a 3.5mm model headphone head, which is compatible with most display devices.
4. Plug and Play: The underwater fishing camera requires no soldering and can be plug and play, as long as your display has a 3.5mm headphone jack.
5. Cautions: Fishing camera wiring method please refer to the selling point diagram, if our way is inconsistent with your display wiring sequence, you can rewire and use by yourself.

Specification:















Item Type: Fish Finder Camera
Material: Aluminum Alloy
Headphone Head Model: 3.5mm, 1.4cm/0.6in
System for Standard : NTSC
Effective Pixels: NTSC: 720 (H) for X4 80 (V)
Minimum Illumination: 0.0001 Lx / F12
Horizontal Definition: CVBS: 340,000 Pixels
Angle: 195 Degree Wide Angle
Scanning Frequency: 60Hz
SNR: for gt ;46dB
Video Output: 1.0V p p
Operating Temperature: -10°C to 70°C
Power Supply: DC 5V-28V (±10%)
LED Light: 940 Light

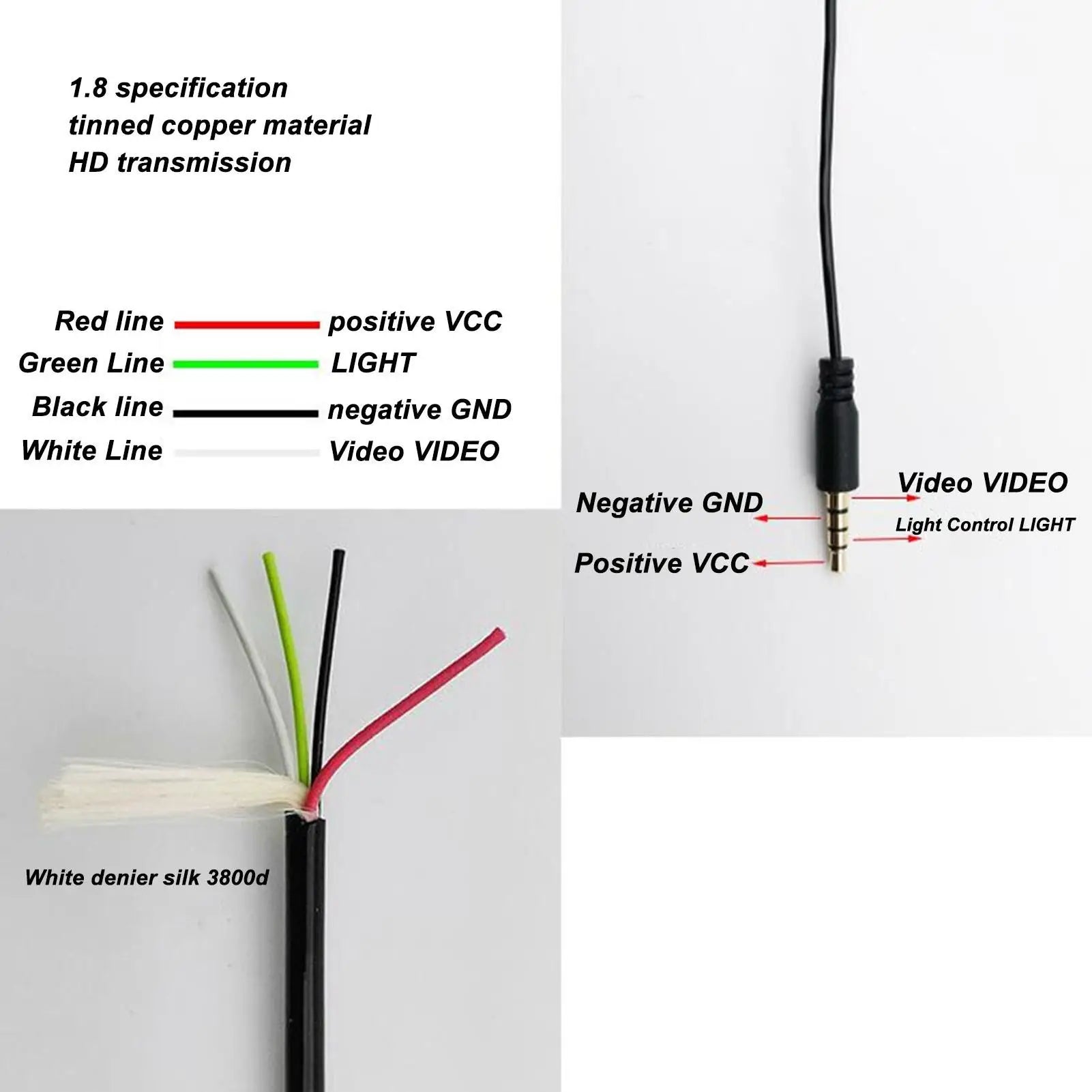

Interface Signals:
Positive: VCC Voltage for range : DC 5V-28V (±10%)
Negative: GND
VIDEO: VIDEO
Light Control: LED















Package List:

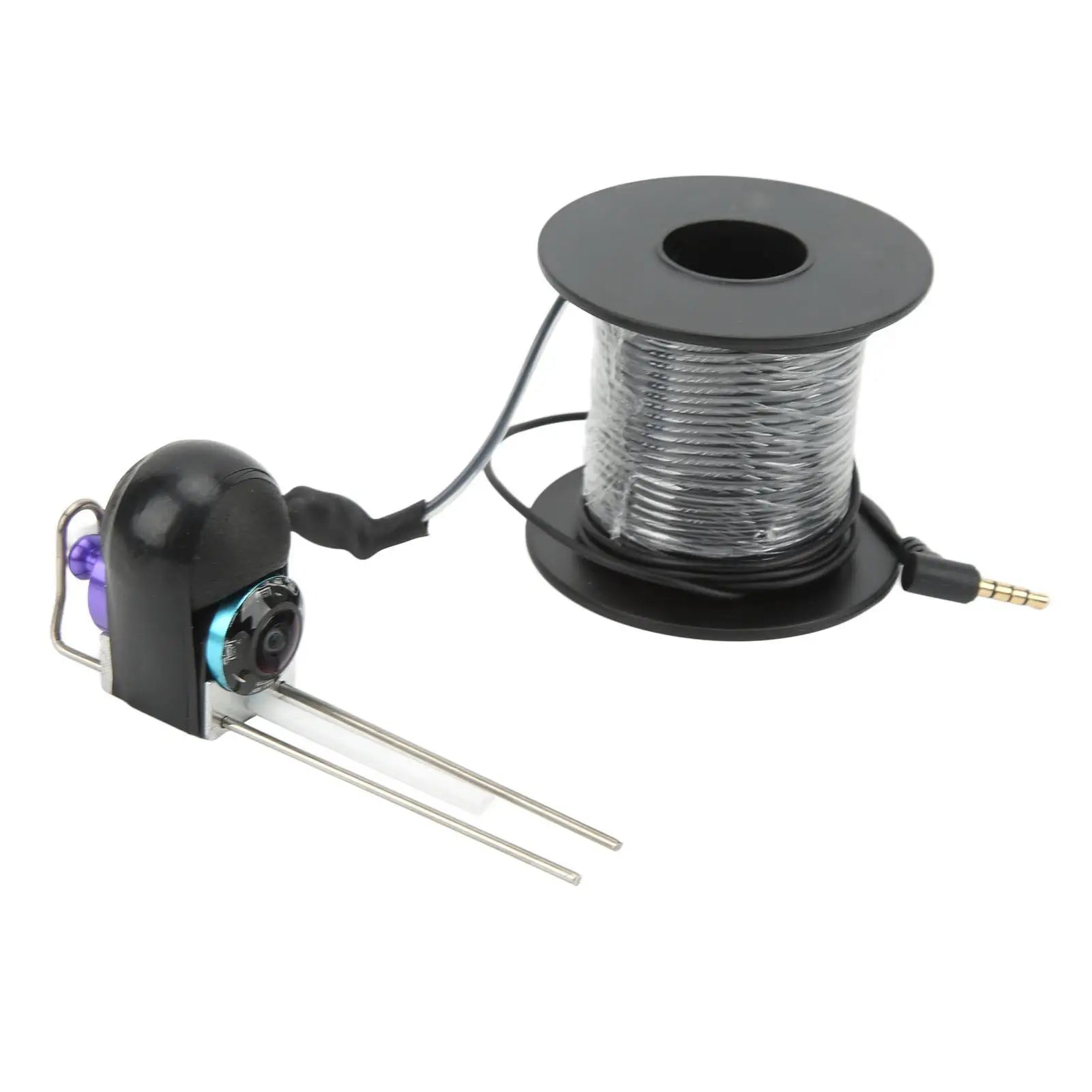

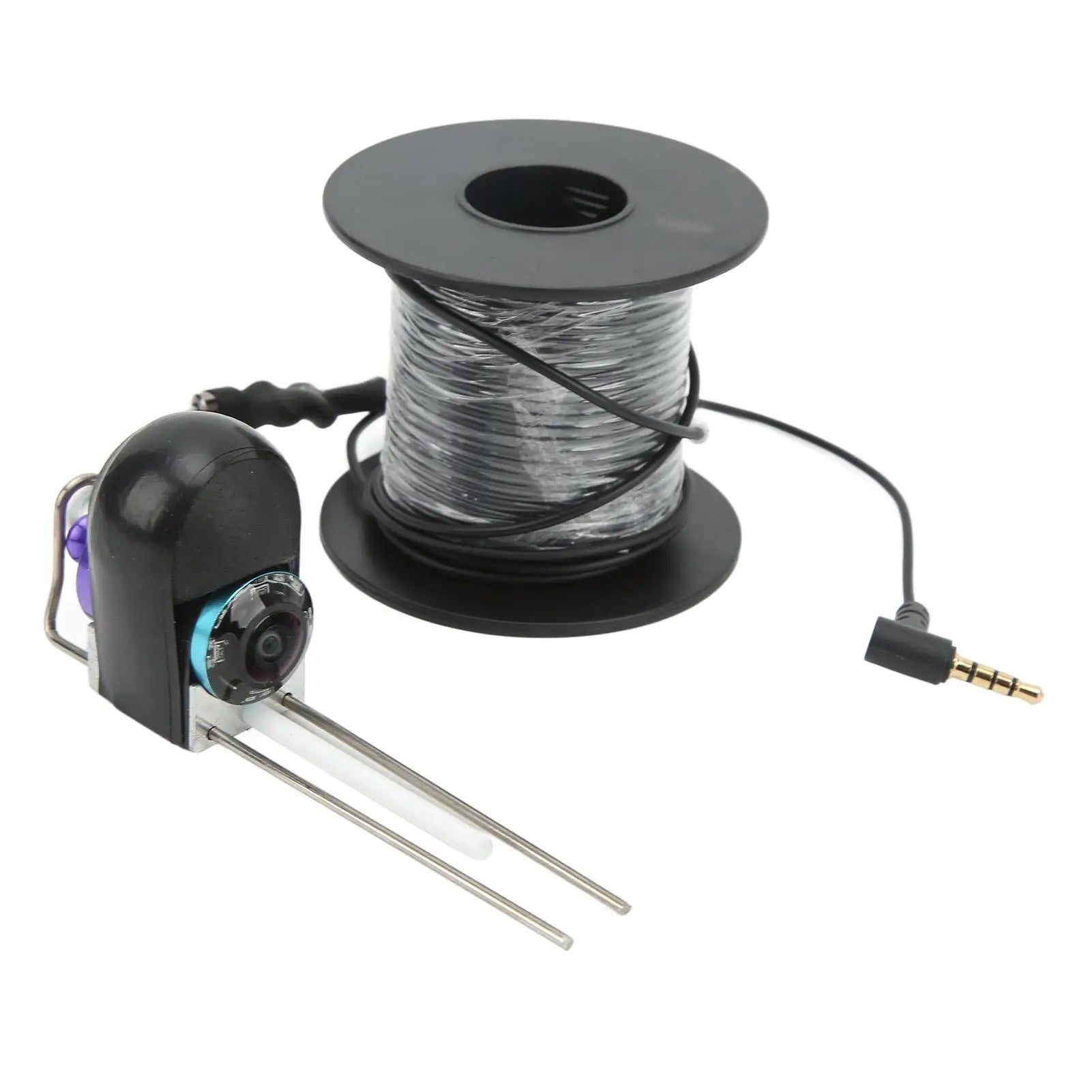

1 x Fish Finder Camera

Note:

Please allow some error in manual measurement.
